Page 6 -
P. 6
ELECTRIC / GASOLINE
E-AO50 E-ZR50
Engine: 1000W36V neodymium magnet BRUSH motor Engine: 1000W36V neodymium magnet BRUSHLESS motor
Optional: 1300W48V neodymium magnet BRUSHLESS motor Optional: 1300W48V neodymium magnet BRUSHLESS motor
Battery: 36V12AH lead acid battery Optional: 48V13AH lithium battery Battery: 36V12AH lead acid battery
Charger: 43.2V-1.5A for 36V lead acid battery Optional: 48V13AH lithium battery
Optional: 54.6V-2.0A for 48V li-battery Charger: 43.2V/1.5A for 36V lead acid battery
Transmission: Chain drive, with reverse gear, speed adjustable Optional: 54.6V-2.0A for 48V li-battery
Final Drive for 36V1000W: 11T/80T, 25H# chain Transmission: Chain drive, with reverse gear, speed adjustable
Final Drive for 48V1300W: 10T/70T, 219H# chain Final Drive: 10T/70T, 219H# chain
Tires: Front 14x4.10-6", rear 14x5.00-6'', TUBELESS Tires: Front 14x4.10-6", rear 14x5.00-6'', TUBELESS
Brake system: Front & rear disc brake Brake system: Front & rear disc brake
Suspension: Front A swing arm with double shock,rear mono shock Suspension: Front A swing arm with double shock, rear mono shock
Range per full charge: 17km/36V13AH, 20km/48V13AH Range per full charge: 20km Max load capacity: 65kgs
Max.speed: 28kmph(1000W) / 30kmph(1300W) Max load capacity: 65kgs Max.speed: 28kmph(1000W) / 33kmph(1300W)
Wheelbase: 780mm Seat height: 550mm Wheelbase: 790mm Seat height: 550mm
Min ground clerance: 180mm Dry weight: 58kgs / lead acid battery Min ground clerance: 180mm Dry weight: 58kgs / lead acid battery
Dry weight: 49kgs / lithium battery Packing carton size: 1040*630*525mm Dry weight: 50kgs / lithium battery Packing carton size: 1040*630*525mm
QTY/Container: 80pcs/20FT, 200pcs/40'HQ QTY/Container: 80pcs/20FT, 200pcs/40'HQ

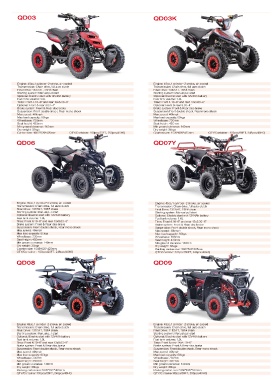

QD03 QD03K
Engine: 49cc,1 cylinder-2 stroke, air cooled Engine: 49cc,1 cylinder-2 stroke, air cooled
Transmission: Chain drive, full auto clutch Transmission: Chain drive, full auto clutch
Final Drive: 13T/54T, T8F# chain Final Drive: 13T/54T, T8F# chain
Starting system: Manual pull start Starting system: Manual pull start
Optional: Electric start with 12V4Ah battery Optional: Electric start with 12V4Ah battery
Fuel tank volume: 1.5L Fuel tank volume: 1.0L
Tires: Front 4.10-6" and rear 13x5.00-6" Tires: Front 4.10-6" and rear 13x5.00-6"
Optional: Front & rear 3.00-4'' Optional: Front & rear 3.00-4''
Brake system: Front & Rear disc brake Brake system: Front & Rear disc brake
Suspension: Front double shock, Rear mono shock Suspension:Front double shock, Rear mono shock
Max.speed: 40kmph Max.speed: 40kmph
Max load capacity: 60kgs Max load capacity: 60kgs
Wheelbase: 700mm Wheelbase: 700mm
Seat height: 435mm Seat height: 450mm
Min ground clerance: 140mm Min ground clerance: 140mm
Dry weight: 32kgs Dry weight: 34kgs
Carton size: 1005*620*425mm QTY/Container: 100pcs/20FT, 252pcs/40HQ Ccarton size: 1020*620*425mm QTY/Container : 100pcs/20FT, 248pcs/40HQ
QD06 QD07Y
Engine: 49cc,1 cylinder-2 stroke, air cooled Engine: 49cc,1 cylinder-2 stroke, air cooled
Transmission: Chain drive, full auto clutch Transmission: Chain drive, full auto clutch
Final Drive: 13T/54T, T8F# chain Final Drive: 13T/54T, T8F# chain
Starting system: Manual pull start Starting system: Manual pull start
Optional: Electric start with 12V4Ah battery Optional: Electric start with 12V4Ah battery
Fuel tank volume: 1.0L Fuel tank volume: 1.0L
Tires: Front 4.10-6" and rear 13x5.00-6" Tires: Front 4.10-6" and rear 13x5.00-6"
Brake system: Front & Rear disc brake Brake system: Front & Rear disc brake
Suspension: Front double shock, Rear mono shock Suspension: Front double shock, Rear mono shock
Max.speed: 40kmph Max.speed: 40kmph
Max load capacity: 60kgs Max load capacity: 60kgs
Wheelbase: 700mm Wheelbase: 700mm
Seat height: 450mm Seat height: 450mm
Min ground clerance: 140mm Min ground clerance: 140mm
Dry weight: 35kgs Dry weight: 38kgs
Ccarton size: 1005*620*425mm Packing carton size:1020*620*425mm
QTY/Container : 100pcs/20FT, 248pcs/40HQ QTY/Container:100pcs/20FT, 248pcs/40HQ
