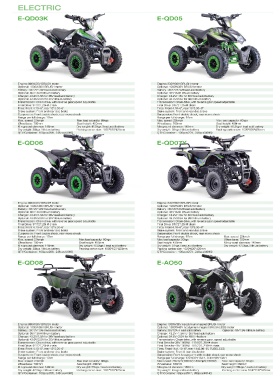

Page 5 -
P. 5
ELECTRIC
E-QD03K E-QD05
Engine: 800W36V BRUSH motor Engine: 800W36V BRUSH motor
Optional: 1000W36V BRUSH motor Optional: 1000W36V BRUSH motor
Battery : 3X12V12AH lead acid battery Battery : 3X12V12AH lead acid battery
Optional: 36V13AH lithium battery Optional: 36V13AH lithium battery
Charger: 43.2V/1.5A for 36V lead acid battery Charger: 43.2V/1.5A for 36V lead acid battery
Optional: 42.0V/2.0A for 36V lithium battery Optional: 42.0V/2.0A for 36V lithium battery
Transmission: Chain drive, with reverse gear,speed adjustable Transmission: Chain drive, with reverse gear,speed adjustable
Final Drive: 9T/72T,25H# chain Final Drive: 9T/72T,25H# chain
Tires: Front 4.10-6", rear 13*5.00-6" Tires: Front 4.10-6", rear 13*5.00-6"
Brake system: Front and rear disc brake Brake system: Front and rear disc brake
Suspension: Front double shock, rear mono shock Suspension: Front double shock, rear mono shock
Range per full charge: 17km Range per full charge: 17km
Max. speed: 22kmph Max load capacity: 60kgs Max. speed: 22kmph Max load capacity: 60kgs
Wheelbase: 700mm Seat height: 450mm Wheelbase: 700mm Seat height: 450mm
Min ground clerance: 140mm Dry weight: 46.5kgs / lead acid battery Min ground clerance: 140mm Dry weight: 46.5kgs / lead acid battery
Dry weight: 38kgs / lithium battery Packing carton size: 1020*620*425mm Dry weight: 38kgs / lithium battery Packing carton size: 1020*620*425mm
QTY/Container: 100pcs/20ft , 248pcs/40HQ QTY/Container: 100pcs/20ft , 248pcs/40HQ
E-QD06 E-QD07Y
Engine: 800W36V BRUSH motor Engine: 800W36V BRUSH motor
Optional: 1000W36V BRUSH motor Optional: 1000W36V BRUSH motor
Battery : 3X12V12AH lead acid battery Battery : 3X12V12AH lead acid battery
Optional: 36V13AH lithium battery Optional: 36V13AH lithium battery
Charger: 43.2V/1.5A for 36V lead acid battery Charger: 43.2V/1.5A for 36V lead acid battery
Optional: 42.0V/2.0A for 36V lithium battery Optional: 42.0V/2.0A for 36V lithium battery
Transmission: Chain drive, with reverse gear,speed adjustable Transmission: Chain drive, with reverse gear,speed adjustable
Final Drive: 9T/72T,25H# chain Final Drive: 9T/72T,25H# chain
Tires: Front 4.10-6", rear 13*5.00-6" Tires: Front 4.10-6", rear 13*5.00-6"
Brake system: Front and rear disc brake Brake system: Front and rear disc brake
Suspension: Front double shock, rear mono shock Suspension: Front double shock, rear mono shock
Range per full charge: 17km Range per full charge: 17km Max. speed: 22kmph
Max. speed: 22kmph Max load capacity: 60kgs Max load capacity: 60kgs Wheelbase: 700mm
Wheelbase: 700mm Seat height: 450mm Seat height: 450mm Min ground clerance: 140mm
Min ground clerance: 140mm Dry weight: 46.5kgs / lead acid battery Dry weight: 51kgs / lead acid battery Dry weight: 42.5kgs / lithium battery
Dry weight: 38kgs / lithium battery Packing carton size: 1005*620*425mm Packing carton size: 1020*620*425mm
QTY/Container: 100pcs/20ft , 248pcs/40HQ QTY/Container: 100pcs/20ft , 248pcs/40HQ
E-QD08 E-QD09
Engine: 800W36V BRUSH motor Engine: 800W36V BRUSH motor
Optional: 1000W36V BRUSH motor Optional: 1000W36V BRUSH motor
Battery : 3X12V12AH lead acid battery Battery : 3X12V12AH lead acid battery
Optional: 36V13AH lithium battery Optional: 36V13AH lithium battery
Charger: 43.2V/1.5A for 36V lead acid battery Charger: 43.2V/1.5A for 36V lead acid battery
Optional: 42.0V/2.0A for 36V lithium battery Optional: 42.0V/2.0A for 36V lithium battery
Transmission: Chain drive, with reverse gear,speed adjustable Transmission: Chain drive, with reverse gear,speed adjustable
Final Drive: 9T/72T,25H# chain Final Drive: 9T/72T,25H# chain
Tires: Front 4.10-6", rear 13*5.00-6" Tires: Front 4.10-6", rear 13*5.00-6"
Brake system: Front and rear disc brake Brake system: Front and rear disc brake
Suspension: Front double shock, rear mono shock Suspension: Front double shock, rear mono shock
Range per full charge: 17km Range per full charge: 17km
Max. speed: 22kmph Max load capacity: 60kgs Max. speed: 22kmph Max load capacity: 60kgs
Wheelbase: 700mm Seat height: 450mm Wheelbase: 730mm Seat height: 490mm
Min ground clerance: 140mm Dry weight: 51kgs / lead acid battery Min ground clerance: 140mm Dry weight: 52kgs / lead acid battery
Dry weight: 42.5kgs / lithium battery Packing carton size: 1020*620*425mm Dry weight: 44kgs / lithium battery Packing carton size: 1060*620*520mm
QTY/Container: 100pcs/20ft , 248pcs/40HQ QTY/Container: 80pcs/20ft , 200pcs/40HQ
